NEHRP Site Specific Information
Models
RAW, Exponential and Residual Plots
SJT—San Juan Bautista—Raw, exponential models, and residual plots for each measured channel are shown for gauge 1, gauge 2, and for gauge 3.
PFT—Pinion Flat—Raw, exponential models, and residual plots for each measured channel are shown for gauge 1, gauge 2, and for gauge 3.
CLT—San Gabriel Mountains—Raw, exponential models, and residual plots for each measured channel are shown for gauge 1, for gauge 2, for gauge 3, and for gauge 4.
EDT—Eades—Raw, exponential models, and residual plots for each measured channel are shown for gauge 1, gauge 2, and for gauge 3.
FLT—Frohlich—Raw, exponential models, and residual plots for each measured channel are shown for gauge 1, gauge 2, and for gauge 3.

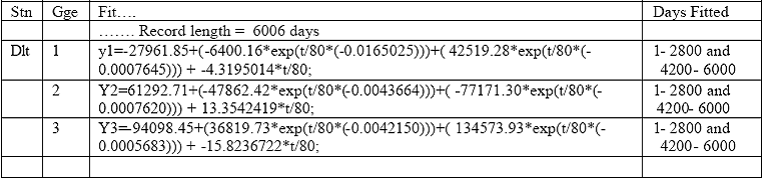

DLT—DonaLee—Raw, exponential models, and residual plots for each measured channel are shown for gauge 1, gauge 2, and for gauge 3.

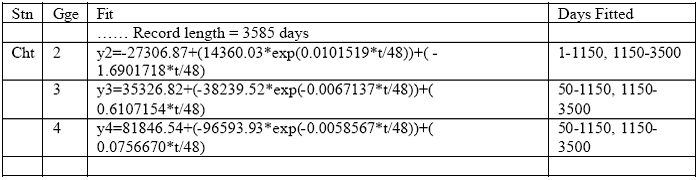

CHT—Chabot—Raw, exponential models, and residual plots for each measured channel are shown for gauge 2, gauge 3, and for gauge 4

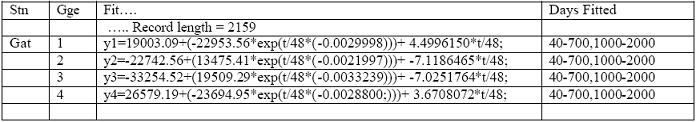

GAT—Garin— Raw, exponential models, and residual plots for each measured channel are shown for gauge 1, gauge 2, gauge 3, and for gauge 4
